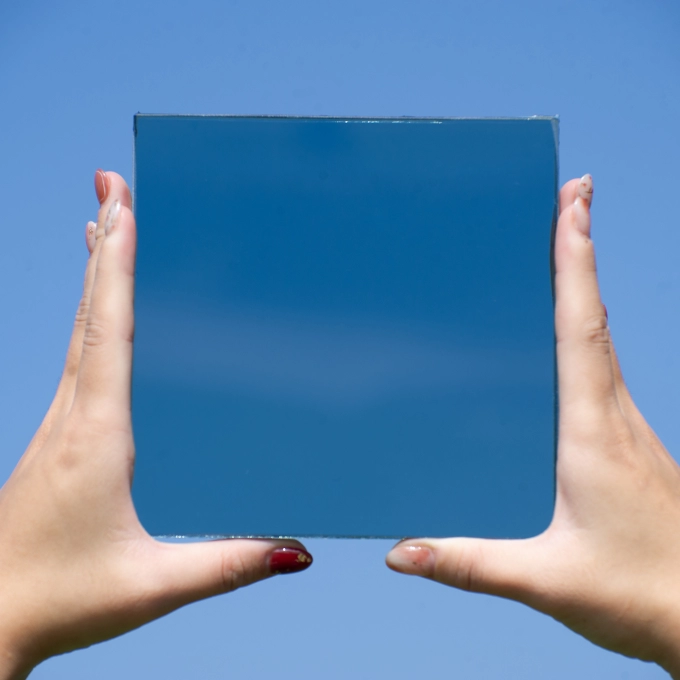

LUCIH Energy-Saving Film - Ocean Diamond Grey VG185F

LUCIH Energy-Saving Film - Ocean Diamond Grey VG185F

• Assembly Method (Exterior to Interior):
Grey glass + LUCIH energy-saving film Diamond Grey + Clear glass

•Innovative Design for Modern Architecture
The LUCIH Diamond Gray energy-saving film is a PVB adhesive layer designed specifically for energy-efficient glass. It combines exceptional heat insulation and privacy protection, making it ideal for modern buildings. The subtle and elegant diamond-gray color enhances aesthetic appeal, while advanced nano-ceramic insulation technology effectively blocks infrared rays and nearly 100% of UV rays. This significantly reduces heat transfer indoors, lowering air-conditioning energy consumption and improving indoor comfort.

•High Transparency Design
Despite its excellent insulation properties, the LUCIH energy-saving film maintains a high-transparency design. This ensures that light can pass through seamlessly, achieving optimal insulation while keeping interiors bright and comfortable. It is suitable for both commercial and residential glass applications.

• Superior Weather Resistance and Sound Insulation
The LUCIH energy-saving film not only offers outstanding weather resistance and clarity but also provides excellent sound insulation. This makes it particularly suitable for glass applications in high-noise environments, such as commercial buildings, residential properties, and automotive windows. These features make it an ideal choice for enhancing space comfort and quality.
Product Description
Glass specifications5mm grey glass + LUCIH energy-saving film Diamond Grey + 5mm clear glass5mm clear glass + PVB Light film + 5mm clear glass
Visible light transmittance
(VT%)		43%86%
Visible light reflectance
(VR%)		5.5%7.8%
Infrared rejection
(IR%)		91.2%46%
UV rejection
(UV%)		99%99%
Shading coefficient
(SC)		0.520.89
Relative heat gain
(RHG) W/m2		354591
