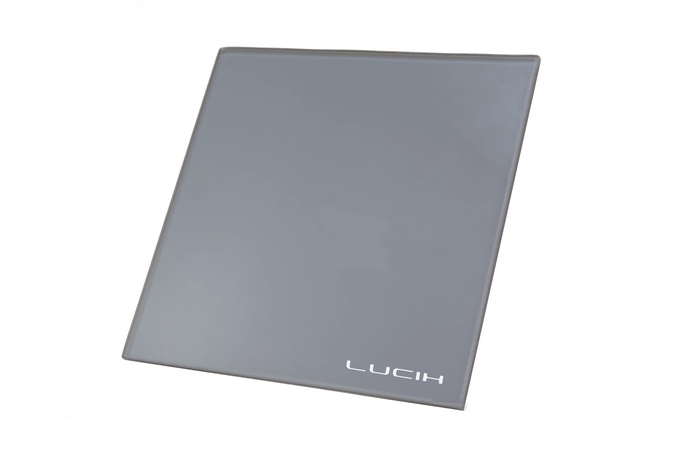

LUCIH Energy-saving Glass Diamond grey VB190D

LUCIH Energy-saving Glass Diamond grey VB190D

Combining modern aesthetics with practicality, this energy-efficient glass infuses your space with a refreshing sense of calm.  Is untique grey-blue tint not only creates a soft and comfortable lighting effect but also enhances the elegance of any building.
  • Available in thicknesses of 5mm, 6mm, 8mm, 10mm, and 12mm—choose the appropriate thickness based on your needs.
  • Effectively reducing the accumulation of solar radiation heat indoors, it helps maintain a pleasant temperature and lessens reliance on air conditioning. This glass is an excellent choice to elevate the taste and quality of your building, bringing lasting aesthetic and practical value to your space


Product Description
Glass specifications5mm  Diamond grey VB190DClear glass
Visible light transmittance
(VT%)
67%88%
Visible light reflectance
(VR%)
5%8.5%
Infrared rejection
(IR%)
96.6%24%
UV rejection
(UV%)
99%16%
Shading coefficient
(SC)
0.5570.97
Relative heat gain
(RHG) W/m2
397655
